Text Box:  CONSTRUCTION

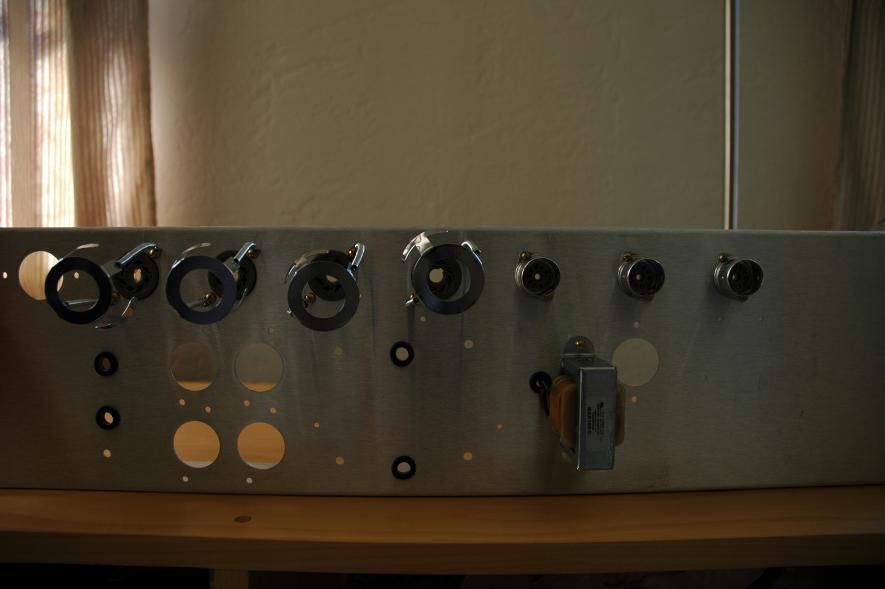

Text Box: As with most amps, this one starts with loading the basic hardware, the transformers, and wiring the heaters.  Because the Super Lead chassis has lots of real estate, this amp is relatively easy to build.

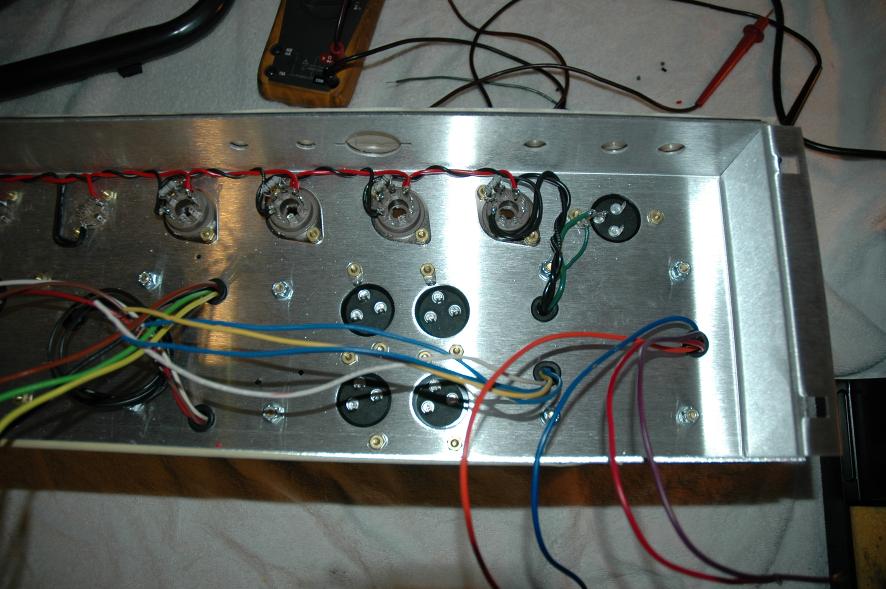

Text Box: Wiring the heaters is almost always one of the first jobs in any amp.  The leads should be twisted to eliminate the induction of hum in other parts of the circuit.    Here you can see the cap cans installed as well.

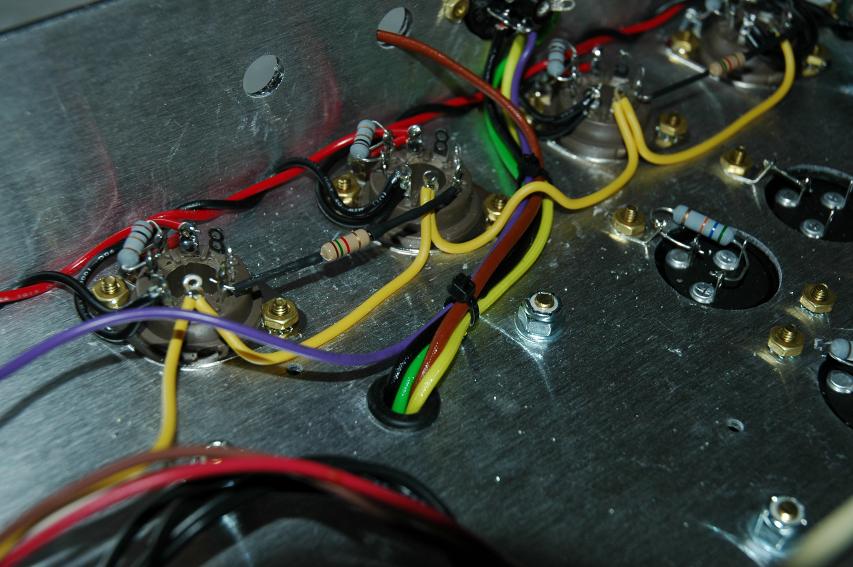

Text Box: Some basic socket wiring is done here, and the output transformer is wired to the impedance selector.
Text Box: Here the caps are installed with a buss bar for grounding.
Text Box:    METRO 69
